HYO JIN INTERNATIONAL CORP

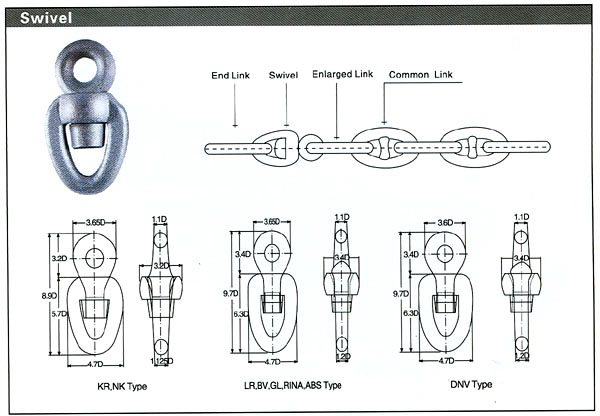

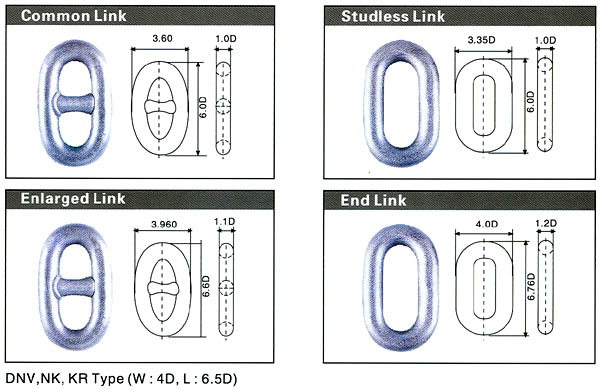

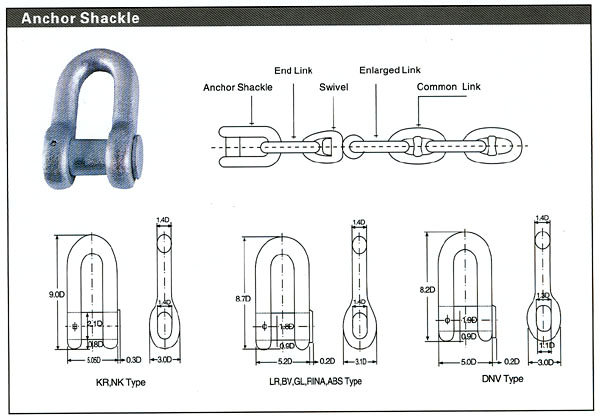

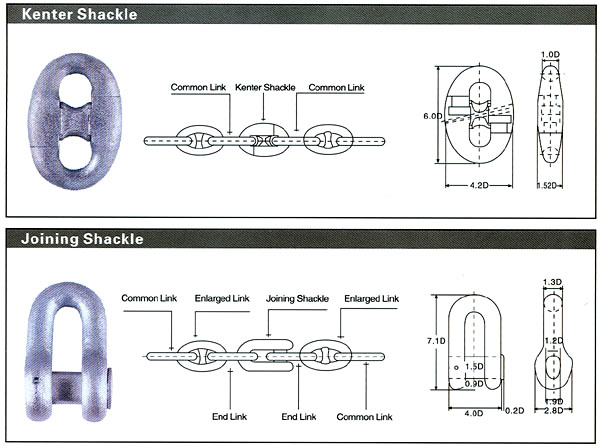

DIMENSION OF ANCHOR CHAIN & ACCESSORIES

APPROXIMATE WEIGHT OF ANCHOR CHAIN & FITTING

Size (mm)	Stud Link Chain		Common Link	Enlarged Link	End Link	Kenter Shackle	Joining Shackle	Anchor Shackle	Swivel	Anchor Swivel Shackle
Size (mm)	kg/m	kg/27.5m	Common Link	Enlarged Link	End Link	Kenter Shackle	Joining Shackle	Anchor Shackle	Swivel	Anchor Swivel Shackle
17.5	6.8	184	0.48	0.66	0.71	0.82	1.6	2.5	2.1	-
19	8	217	0.66	0.77	0.92	1.10	1.8	2.8	2.5	-
20.5	9.3	253	0.77	0.95	1.17	1.35	2.1	3.3	3.1	-
22	11	291	0.93	1.25	1.28	2	2.8	5	3.5	13.9
24	13	347	1.21	1.7	1.77	2.4	3.6	6.5	5	18.1
26	15	407	1.54	2.15	2.2	2.8	4.4	8	6	20.9
28	17	472	1.93	2.8	2.9	3.6	5.6	10	7.5	30.6
30	20	542	2.4	3.2	3.5	4.2	7	14	9	35.4
32	22	617	2.9	3.8	4.5	5.3	8	15.5	11	40.9
34	25	696	3.4	4.7	5	6.5	10	17	13.5	49.2
36	28	781	4.1	5.5	5.9	7.8	12	20	16	63.7
38	32	870	4.8	6.1	6.8	9	14	23	19	71.9
40	35	964	5.6	7.1	8	10.5	15	26	23	80.7
42	39	1,062	6.4	8.4	9.6	12	17	30	27	93.6
44	42	1,166	7.4	10	11.2	13	20	35	32	115
46	46	1,274	8.4	11.5	13	15	23	40	37	128
48	50	1,388	9.7	13.1	15	17	25	45	44	140
50	55	1,506	10.8	15	17	19	30	55	50	174
52	59	1,628	12.2	17	20	21	35	60	57	190
54	64	1,756	13.8	19	22	25	40	65	64	206
56	69	1,889	15.4	21	23	27	45	70	72	224
58	74	2,026	17.0	23	25	30	50	80	80	262
60	79	2,168	18.9	25	27	32	53	90	90	290
62	84	2,315	20.9	28	30	35	60	100	99	312
64	90	2,467	23.1	31	34	39	65	115	110	360
66	95	2,623	25.5	34	38	46	70	130	120	385
68	101	2,785	27.6	37	42	53	80	140	130	412
70	107	2,951	29.8	40	45	60	87	150	152	440
73	117	3,209	34.5	45	52	65	95	165	172	510
76	126	3,479	38.2	50	59	72	110	185	190	575
78	133	3,664	41.2	55	63	77	120	200	194	610
81	144	3,951	46.5	61	70	83	132	220	220	696
84	155	4,249	51.2	68	78	94	147	235	242	776
87	166	4,558	57.7	75	86	105	162	250	270	878
90	177	4,878	63.4	82	95	112	175	265	300	971
92	185	5,097	68.0	88	100	120	187	278	325	1,020
95	198	5,435	74.5	98	112	130	210	300	345	1,123
97	206	5,667	79.8	102	120	140	225	328	360	1,196
100	219	6,023	87.3	112	130	150	240	360	385	1,310
102	228	6,226	93.5	124	140	160	260	400	424	1,370
105	241	6,640	102.2	133	152	177	288	428	460	1,516
107	251	6,895	106.1	142	165	185	313	452	510	1,650
111	270	7,420	117.8	154	180	208	340	492	550	1,792
114	285	7,827	128.3	175	200	230	374	542	600	1,966
117	300	8,244	139.7	185	215	250	402	585	650	2,125
120	315	8,672	152.1	198	226	268	430	630	705	2,292
122	326	8,964	157.3	217	246	290	452	685	774	2,365
124	337	9,260	168.4	222	255	314	474	737	830	2,498
127	353	9,714	176.6	242	276	337	510	790	890	2,683
130	370	10,178	192.0	257	300	364	545	856	960	2,878
132	382	10,494	198.0	272	315	392	581	921	1,020	3,026

ANCHOR CHAIN PROOF AND BREAKING LOAD

Size (mm)	Proof Load			Breaking Load
	Grade 1	Grade 1	Grade 1	Grade 1	Grade 1	Grade 1
	(kN)	(kN)	(kN)	(kN)	(kN)	(kN)
17.5	89	127	179	127	179	256
19	105	150	211	150	211	301
20.5	123	175	244	175	244	349
22	140	200	280	200	280	401
24	167	237	332	237	332	476
26	194	278	389	278	389	556
28	225	321	449	321	449	642
30	257	368	514	368	514	735
32	291	417	583	417	583	833
34	328	468	655	468	655	937
36	366	523	732	523	732	1,050
38	406	581	812	581	812	1,160
40	448	640	896	640	896	1,280
42	492	703	981	703	981	1,400
44	538	769	1,080	769	1,080	1,540
46	585	837	1,170	837	1,170	1,680
48	635	908	1,270	908	1,270	1,810
50	686	981	1,370	981	1,370	1,960
52	739	1,060	1,480	1,060	1,480	2,110
54	794	1,140	1,590	1,140	1,590	2,270
56	851	1,220	1,710	1,220	1,710	2,430
58	909	1,290	1,810	1,290	1,810	2,600
60	969	1,380	1,940	1,380	1,940	2,770
62	1,030	1,470	2,060	1,470	2,060	2,940
64	1,100	1,560	2,190	1,560	2,190	3,130
66	1,160	1,660	2,310	1,660	2,310	3,300
68	1,230	1,750	2,450	1,750	2,450	3,500
70	1,290	1,840	2,580	1,840	2,580	3,690
73	1,390	1,990	2,790	1,990	2,790	3,990
76	1,500	2,150	3,010	2,150	3,010	4,300
78	1,580	2,260	3,160	2,260	3,160	4,500
81	1,690	2,410	3,380	2,410	3,380	4,820
84	1,800	2,580	3,610	2,580	3,610	5,160
87	1,920	2,750	3,850	2,750	3,850	5,500
90	2,050	2,920	4,090	2,920	4,090	5,840
92	2,130	3,040	4,260	3,040	4,260	6,080
95	2,260	3,230	4,510	3,230	4,510	6,440
97	2,340	3,340	4,680	3,340	4,680	6,690
100	2,470	3,530	4,940	3,530	4,940	7,060
102	2,560	3,660	5,120	3,660	5,120	7,320
105	2,700	3,850	5,390	3,850	5,390	7,700
107	2,790	3,980	5,570	3,980	5,570	7,960
111	2,970	4,250	5,940	4,250	5,940	8,480
114	3,110	4,440	6,230	4,440	6,230	8,890
117	3,260	4,650	6,510	4,650	6,510	9,300
120	3,400	4,850	6,810	4,850	6,810	9,720
122	3,500	5,000	7,000	5,000	7,000	9,990
124	3,600	5,140	7,200	5,140	7,200	10,280
127	3,750	5,350	7,490	5,350	7,490	10,710
130	3,900	5,570	7,800	5,570	7,800	11,140
132	4,000	5,720	8,000	5,720	8,000	11,420
